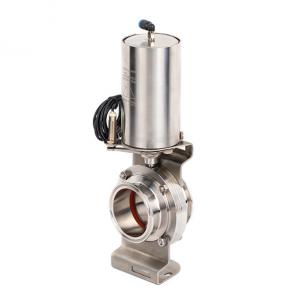

• Stainless steel pneumatic butterfly valve

    ◆Specifications: 3/4"～6" DN20～DN150

    ◆Connection method: welding, clamp, thread, flange

    ◆Max working pressure: ≤10bar

    ◆Supply compressed air: 4-8bar

    ◆Compressed air connection: air pipe joint G1/8"

  • Aluminum pneumatic butterfly valve

    ◆Specifications: 3/4"～6" DN20～DN150

    ◆Connection method: welding, clamp, thread, flange

    ◆Max working pressure: ≤10bar

    ◆Supply compressed air: 4-8bar

    ◆Compressed air connection: air pipe joint G1/8"

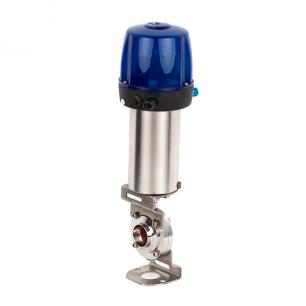

  • Intelligent pneumatic butterfly valve

    ◆Input power: 24V DC

    ◆Working temperature: -10℃ to 120℃

    ◆Parts in contact with materials: SS304/SS316L

    ◆Inner surface contact product: Ra≤1.6μm

    ◆Seal: EPDM, Silicone Rubber (SI), Fluorine Rubber (FPM)

  • Powder butterfly valve

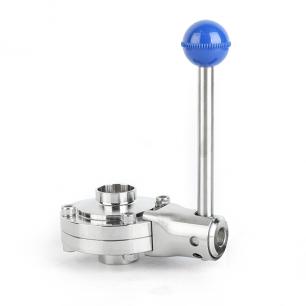

  • Welded butterfly valve

    Size: 1/2"-12", DN10-DN300

    Material: 304/316L, 1.4301/1.4404

    Pressure: ≤10bar

    Temperature: -10℃ to +120℃

    Connection method: clamp
