Size: 1/2"-12", DN10-DN300
Material: 304/316L, 1.4301/1.4404
Pressure: ≤10bar
Temperature: -10℃ to +120℃
Connection method: clamp
application
Butterfly valves, whether operated manually or automatically, can be used in fluid processing applications in food processing, pharmaceutical and chemical industries.
Technical specifications

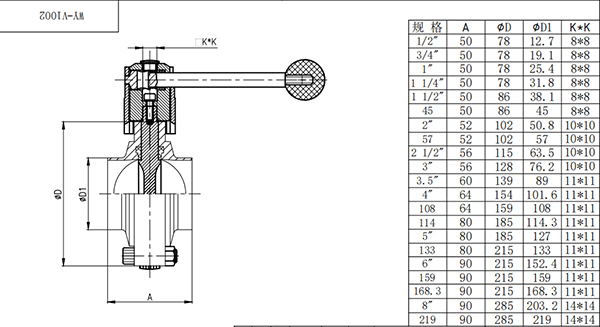

Size: 1/2"-12", DN10-DN300
Material: 304/316L, 1.4301/1.4404
Pressure: ≤10bar
Temperature: -10℃ to +120℃
Connection method: clamp
Executive standard: DIN SMS ISO IDF RJT 3A
Options
Sealing ring: EPDM, silicone, SITON, VIBR, NBR
Handle: pull rod (two positioning, three positioning, four positioning), plastic multiple positions, stainless steel multiple positions.
Actuator: stainless steel pneumatic actuator, electric actuator
working principle

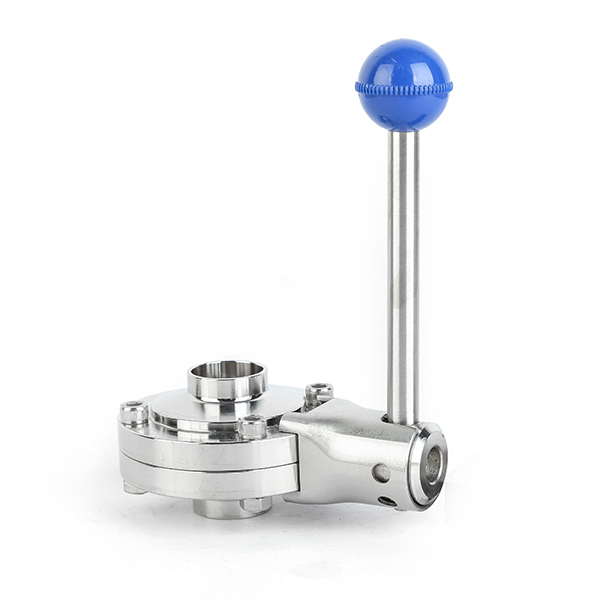

The butterfly valve can be operated automatically by the actuator or manually by the handle.
The handle controls the "open" and "closed" position of the valve, and of course it can be adjusted to other positions.
The actuator converts the axial movement of the piston into a 90-degree rotational movement and transmits it to the butterfly valve.
