application

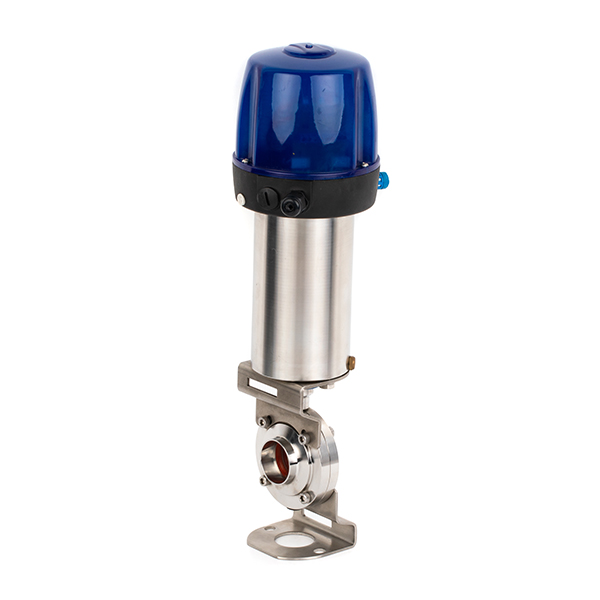

This pneumatic butterfly valve is used to cut off the material flow in the equipment pipeline, and is widely used in industries such as food, wine, beverages, dairy products, toothpaste cosmetics, and biopharmaceuticals.

technical parameter

◆Specifications: 3/4"～6" DN20～DN150

◆Connection method: welding, clamp, thread, flange

◆Max working pressure: ≤10bar

◆Supply compressed air: 4-8bar

◆Compressed air connection: air pipe joint G1/8"

◆Proximity switch: 6-36V DC 2 NPN or PNP (optional)

◆Input power: 24V DC

◆Working temperature: -10℃ to 120℃

◆Parts in contact with materials: SS304/SS316L

◆Inner surface contact product: Ra≤1.6μm

◆Seal: EPDM, Silicone Rubber (SI), Fluorine Rubber (FPM)

working principle

The compressed air is used to push the aluminum core piston in the pneumatic actuator to compress and drive the rotary head downward, so that the rotary head rotates 90° in the track of the aluminum core piston, and the pneumatic actuator and the disc plate are connected by the connecting square core to drive the disc plate. Turn the direction to open and close the valve.
