application

Butterfly valves, whether operated manually or automatically, can be used in fluid processing applications in food processing, pharmaceutical and chemical industries.

Technical specifications

Size: 1/2"-12", DN10-DN300

Material: 304/316L, 1.4301/1.4404

Pressure: ≤10bar

Temperature: -10℃ to +120℃

Connection method: clamp

Executive standard: DIN SMS ISO IDF RJT 3A

Options

Sealing ring: EPDM, silicone, SITON, VIBR, NBR

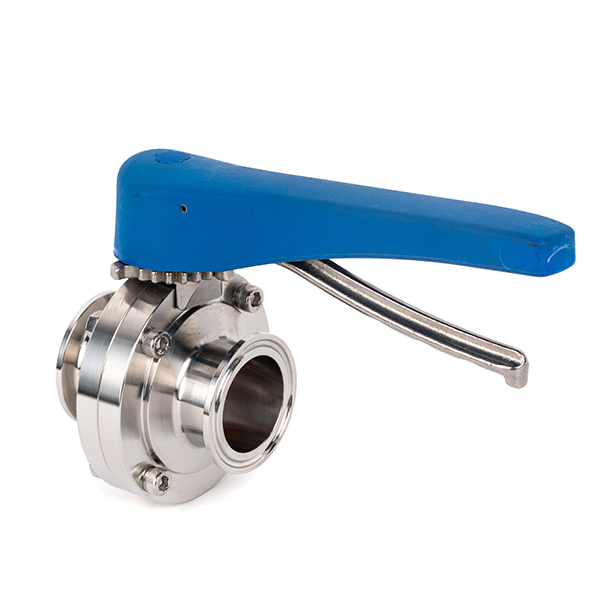

Handle: pull rod (two positioning, three positioning, four positioning), plastic multiple positions, stainless steel multiple positions.

Actuator: stainless steel pneumatic actuator, electric actuator

working principle

The butterfly valve can be operated automatically by the actuator or manually by the handle.

The handle controls the "open" and "closed" position of the valve, and of course it can be adjusted to other positions.

The actuator converts the axial movement of the piston into a 90-degree rotational movement and transmits it to the butterfly valve.
