Oval pressure manhole
Inner surface: Ra≤0.8 μ m-0.5μ m
Outer surface: polished, matte, sandblasted
MAX pressure: 3.0bar
Gasket: EPDM, NBR, SILICON, FPM comply with FDA177.26000
Degree: 75, 100, 120, 150mm
Material: AISI304(1.4301)/316L(1.4404)
application
The manhole is mainly used in food, wine, beverage, pharmaceutical and other industrial field tank equipment.

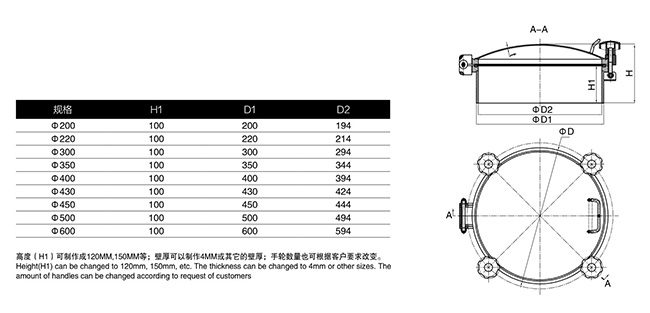

Design and characteristics
Inner opening manhole cover
Wrench handle
Inner surface: Ra≤0.8 μ m-0.5μ m
Outer surface: polished, matte, sandblasted
MAX pressure: 3.0bar
Gasket: EPDM, NBR, SILICON, FPM comply with FDA177.26000
Degree: 75, 100, 120, 150mm
Material: AISI304(1.4301)/316L(1.4404)
