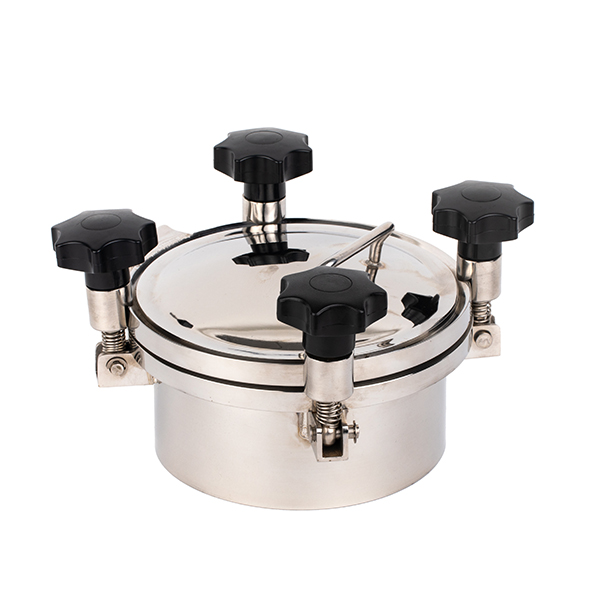

Round pressure manhole
Inner surface: Ra≤0.8 μ m-0.5μ m
Outer surface: polished, matte, sandblasted
MAX pressure: 5.0bar
Gasket: EPDM, NBR, SILICON, FPM comply with FDA177.26000
Height: 100, 120, 150mm
Material: AISI304(1.4301)/316L(1.4404)
application
The manhole is mainly used in food, wine, beverage, pharmaceutical and other industrial field tank equipment.
Design and characteristics
Opening manhole cover
Plastic handwheel or stainless steel handwheel
With Flange Speculum
Inner surface: Ra≤0.8 μ m-0.5μ m
Outer surface: polished, matte, sandblasted
MAX pressure: 5.0bar
Gasket: EPDM, NBR, SILICON, FPM comply with FDA177.26000
Height: 100, 120, 150mm
Material: AISI304(1.4301)/316L(1.4404)
