Material:
Steel parts: stainless steel 304, ≤0Cr18Ni9≥, ≤1.4301≥ stainless steel 316L≤00Cr17Ni14M02≥, ≤1.4404≥
Sealing ring: Silicone rubber (VMQ), fluorine rubber (FPM), EPDM

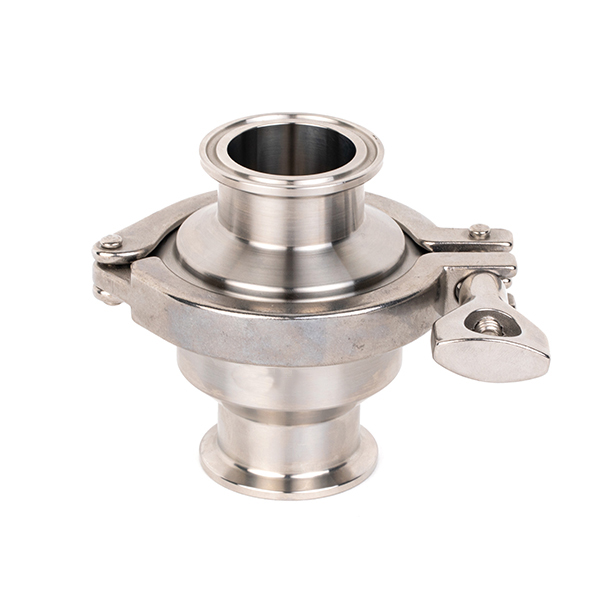

Clamp check valve
This type of check valve is used in stainless steel piping systems to prevent fluid backflow.
Technical data:
If the check valve is installed in a vertical pipe, the pressure required to open the valve is about 300-600kpa, the pressure of the MAX conveying material is 800kpa, and the temperature range for use varies according to the choice of seal material. The commonly used ternary Ethylene propylene rubber (EPDM) is -10℃~+140℃
Material:
Steel parts: stainless steel 304, ≤0Cr18Ni9≥, ≤1.4301≥ stainless steel 316L≤00Cr17Ni14M02≥, ≤1.4404≥
Sealing ring: Silicone rubber (VMQ), fluorine rubber (FPM), EPDM
