Product name:

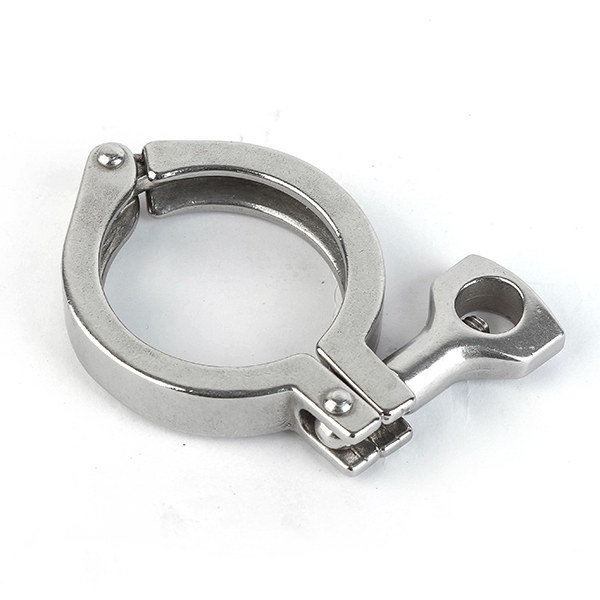

Stainless steel clamp (mirror polished inside and outside, matt, normal light, rough polished, pickling, etc.)

Clamps are commonly known as hand buckles, also called precision cast clamps and quick-set clamps. It belongs to the pipe connection piece, which is used for the connection position between the pipe and the pipe. Generally speaking, the connected pipe piece must be equipped with a quick-fitting joint. The quick-fitting joints at both ends are sandwiched by a sealing ring in the middle, and then the clamp is tightened and fixed. can.

[Features] This product has become the first product for fluid pipeline connection, and has gradually replaced the two traditional pipeline connection methods of flange and welding. The connection method of the clamp makes the pipeline easy to install and better guarantee the tightness of the pipeline, which is generally recognized by the market.

【Product material】Stainless steel 304, 316L

[Product price] According to product specifications, size, material

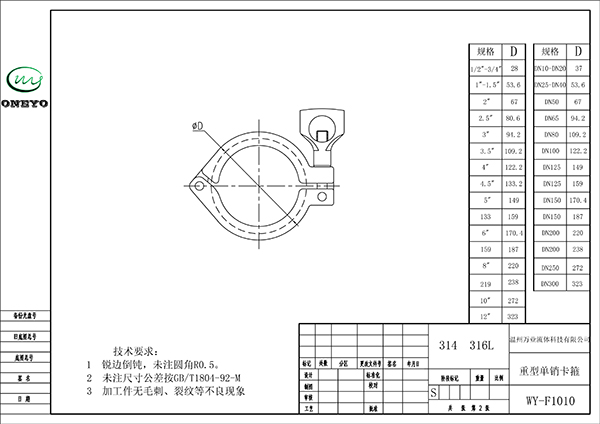

[Product specification] 1/2", this product has many specifications, can be used for the connection of the chuck diameter 25.4, 34 and 40, 50.5mm...

[Characteristic Analysis] Fast, simple and reliable:

1. Fast: No welding and re-galvanizing is required, and the installation speed is more than 3 times faster than flanged pipe fittings.

2. Simple: It is lighter than the flange, cleverly designed mechanical locking, fewer bolts, no need to lock the holes.

3. Reliability: The clamp, washer and the groove of the pipe end are compressed around the entire circumference, and the strength of the pipe end is large, the test pressure reaches 6.4MPa, the temperature is -30℃~150℃, and the vacuum degree can reach 0.8MPa;

Features of stainless steel clamps:

1. The stainless steel clamps are thermally energy-saving, environmentally friendly;

2. Heat and temperature resistance, high pressure resistance, corrosion resistance, and no scaling;

3. Light weight, convenient construction and installation, convenient transportation, especially suitable for home improvement projects. 4. Smooth appearance, good toughness and strong endurance; smooth inner wall and smooth water flow.

5. The hot melt connection is adopted, and the pipes and fittings are homogeneously dissolved into the same whole, which is safe and reliable, and never leaks.

6. High temperature and high pressure resistance: the temperature of pipeline transportation water can reach above 95℃.

7. Thermal insulation and energy saving: The thermal conductivity is only one-hundredth of that of metal pipes.

8. Light weight: The specific gravity is only one-seventh of the metal tube.

9. Beautiful appearance: The inner and outer walls of the product are smooth, the fluid resistance is small, the color is soft, and the appearance is beautiful.

10. Convenient and reliable installation: hot-melt connection, completed in seconds, safe and reliable.

11. Long service life: Under the specified long-term continuous working pressure, the service life can reach more than 50 years under use. 8. Borosilicate glass: 0.6~1.0Mpa.

12. Quartz glass: 0.6~2.5Mpa.

13. Sealing ring material: PTFE, oil-resistant asbestos, nitrile rubber, etc.
