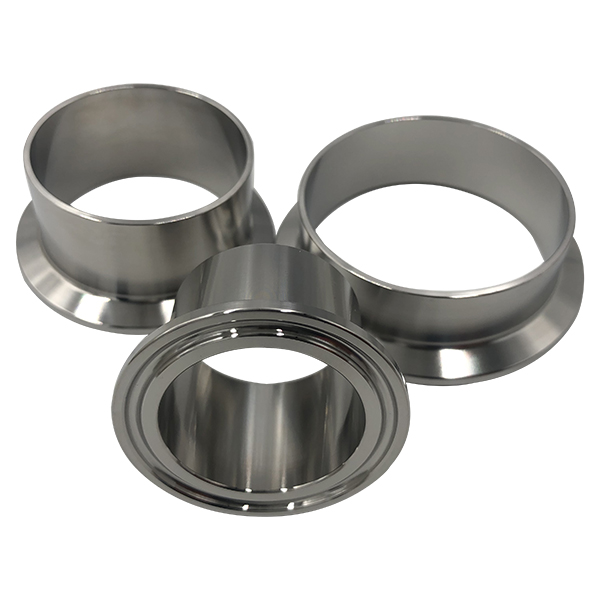

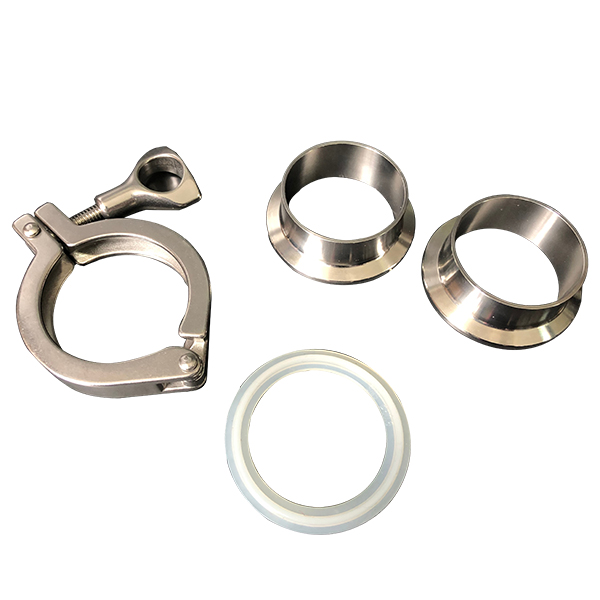

Clamp joint sleeve

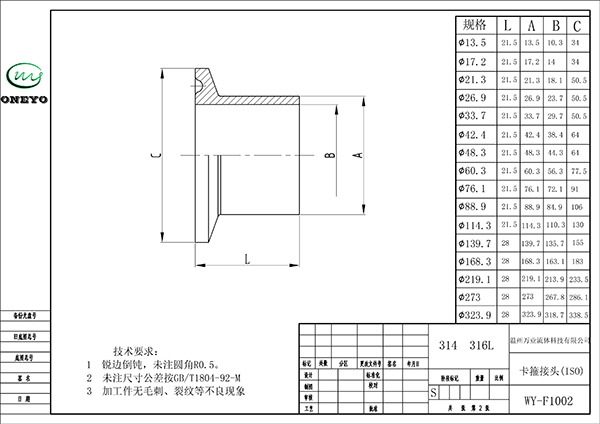

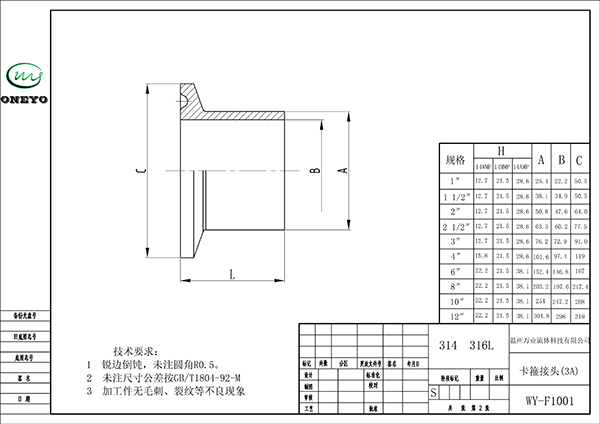

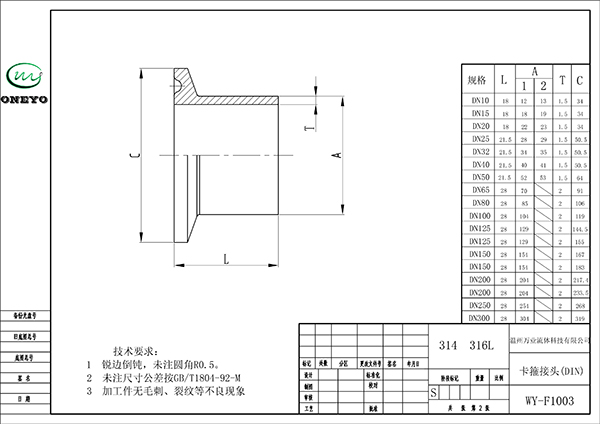

1. Control caliber: DIN standard (DN10-DN300), 3A/IDF standard (1/2"-12"), ISO standard (Ф12.7-Ф219);
2. International industry standards: DIN, ISO, SMS, 3A, IDF, etc.;
3. Product material: stainless steel 304, 316, 316L;
Overview
1. Control caliber: DIN standard (DN10-DN300), 3A/IDF standard (1/2"-12"), ISO standard (Ф12.7-Ф219);
2. International industry standards: DIN, ISO, SMS, 3A, IDF, etc.;
3. Product material: stainless steel 304, 316, 316L;
4. Quality and use: The inside and outside of the quick-fitting joints are processed by CNC to meet the surface precision requirements; suitable for dairy, food, beer, beverage, pharmaceutical, cosmetics and other industrial fields.
