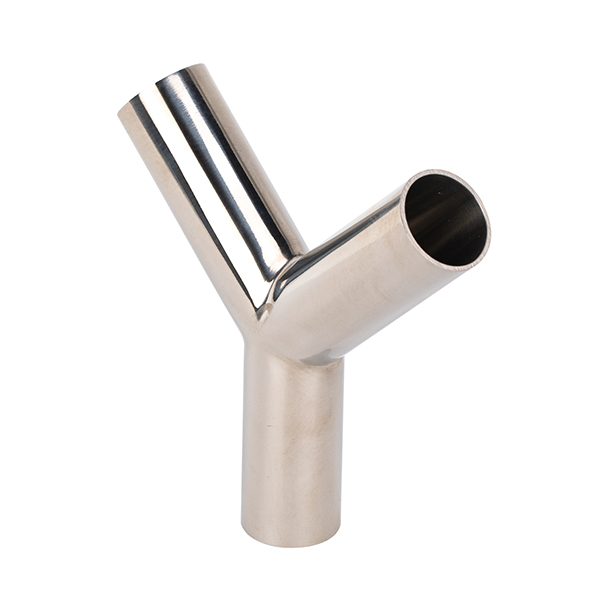

Welding Y type tee
Standards: DIN, 3A, SMS, BS, ISO, GB
Size: 1"-6" DN10-DN200 17.2-168.3
Metal material: 304, 304L, 316, 316L
Overview
The company produces: DIN, SMS, 3A, BS, BPE, ISO2851, ISO1127 and other standard sanitary grade pipe fittings, and the product blanks are all formed by cold-pressing seamless pipes. All products can be processed with different surface roughness according to customer requirements.
All metal materials can provide EN10204, 3.1B certificates.
Standards: DIN, 3A, SMS, BS, ISO, GB
Size: 1"-6" DN10-DN200 17.2-168.3
Metal material: 304, 304L, 316, 316L
Surface treatment： 1) 180 Grit
2) 240 Grit
3) 320 Grit
4) 420 Grit
5) Unpolished

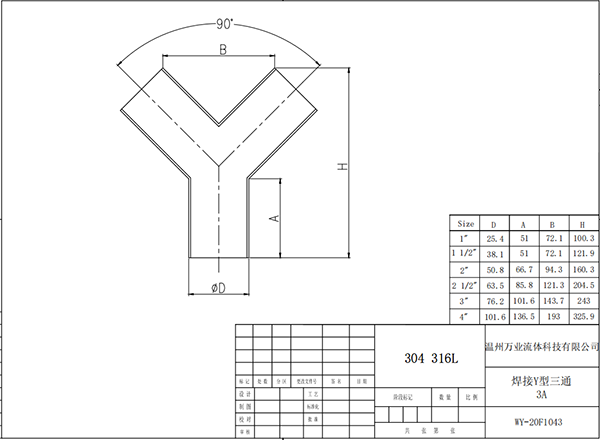

![G0Q$X%N]VM{ML9K29Y]JMXC.png](/upload/image/20200606/1591428270895405.png "1591428270895405.png")
