Working pressure: 0-10bar
Working temperature: -40~150℃
Drive mechanism: manual control
Sealing material: EPDM, EPDM+TFM
Working pressure: 0-10bar
Working temperature: -40~150℃
Drive mechanism: manual control
Sealing material: EPDM, EPDM+TFM

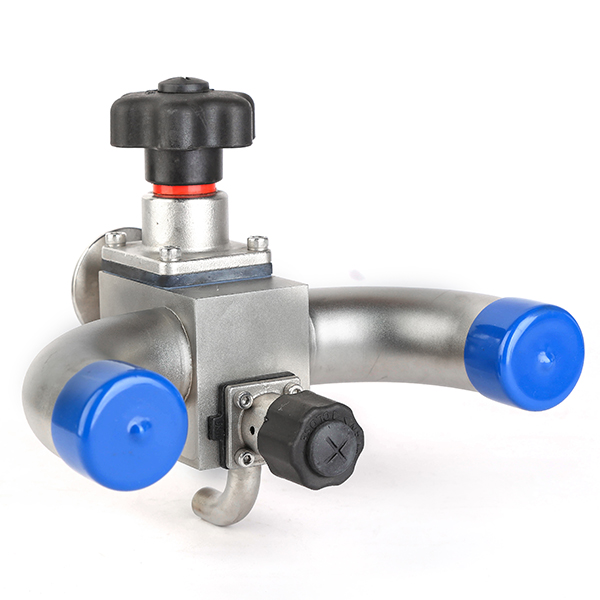

Valve body design: three-way valve body design (with straight elbow) design
Body material: 316L (casting, EN1.4409 CF3M)
Interface size: main channel (DN1) DN25-DN65,
Outlet (DN2) DN15-DN50
Interface mode: KST330-6: welding
Surface treatment: outer surface Ra≤0.5μm (SF1),
Inner surface Ra≤0.375μm (SF4)
Interface standard: ISO, DIN, ASME BPE.3A, BS
It avoids the stagnation between the U-shaped three-way branch pipe and the diaphragm valve weir, reduces the number of welds, improves the smoothness of the contact surface (MOC), and has a horizontal pipeline with a length of min.
Based on SAME BPE 2005: SD-3.11.1 aseptic design specification requirements, L/D ratio ≤ 2:1, eliminate the fluid retention area generated by the discharge port, causing hidden dangers of bacterial growth, and ensure the safety of the circulation circuit.
