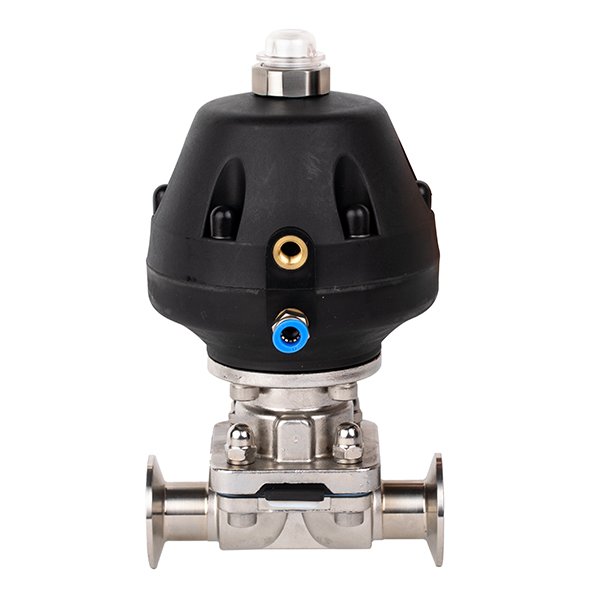

Working pressure: 0-10bar
Working temperature: -40~150℃
Drive mechanism: pneumatic control
Sealing material: EPDM, EPDM+TFM
Body design: straight-through body design
Body material: 316L (casting, EN1.4409 CF3M)
Working pressure: 0-10bar
Working temperature: -40~150℃
Drive mechanism: pneumatic control
Sealing material: EPDM, EPDM+TFM
Body design: straight-through body design
Body material: 316L (casting, EN1.4409 CF3M)
Interface size: DN15-DN80
Interface mode: KST266-1: Welding type, KST266-2 welding card type,
KST266-3: cassette
Surface treatment: outer surface Ra≤0.5μm (SF1),
Inner surface Ra≤0.375μm (SF4)
Interface standard: ISO, DIN, ASME BPE.3A, BS
driver
Type: KST-PC266
Size: DN20-DN80
Main material: PC display cover, stainless steel support, valve stem, shell
Status display: pneumatic switch status display as shown
Signal feedback: FBS, FBS-SVC (intelligent solenoid valve control) can be added
