Specification: 1/2"-4", DN10-DN100
Temperature: -30℃ to +150℃
Pressure: ≤10bar
Material: 304/316L, 1.4301/1.4404
Connection: Clamp
Standard: 3A, ISO, DIN

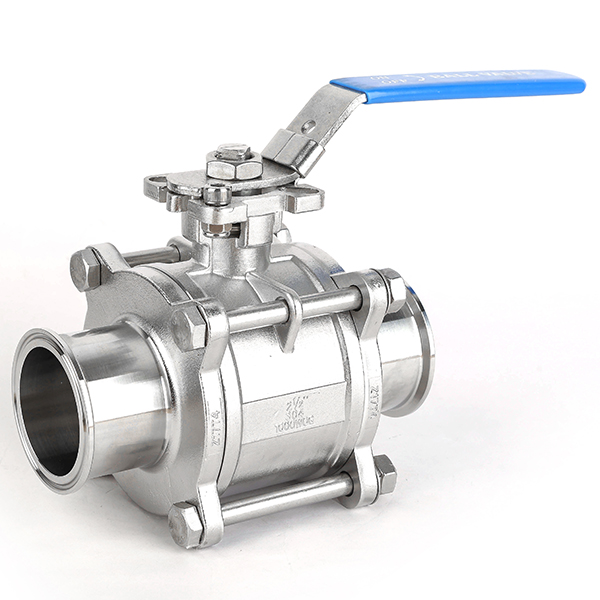

High platform no retention ball valve
The ball valve is an all-inclusive ball seat design, which solves the problem of the liquid retention of the ball valve in the valve cavity. The ball valve is suitable for biopharmaceutical engineering.
Stem seal, spring-compensated design, with long life and low torque, can be used for long-term high temperature 150 ℃.

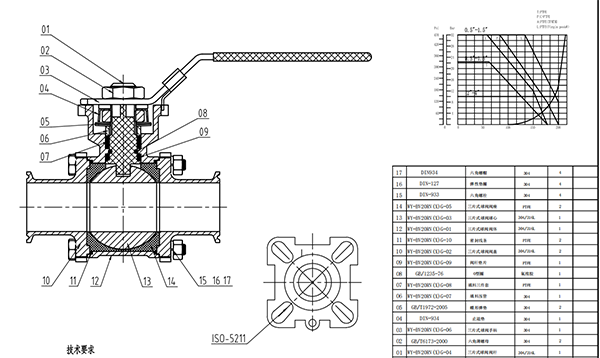

Design and characteristics

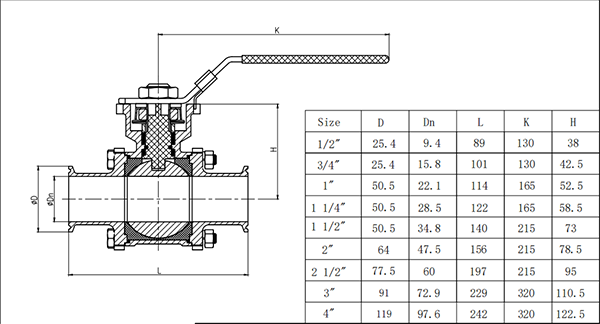

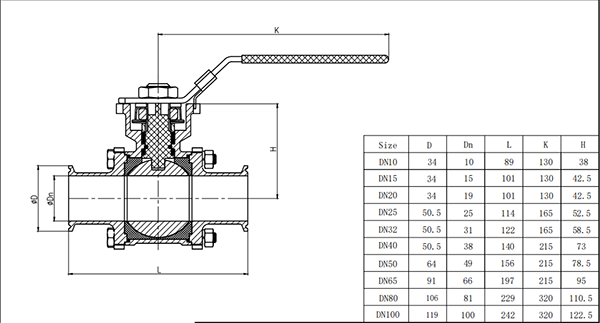

Specification: 1/2"-4", DN10-DN100
Temperature: -30℃ to +150℃
Pressure: ≤10bar
Material: 304/316L, 1.4301/1.4404
Connection: Clamp
Standard: 3A, ISO, DIN
Can be equipped with pneumatic and electric actuators
Valve maintenance can be disassembled without dismantling the pipeline
Low operating torque
Seal: PTFE FDA 177.2600
