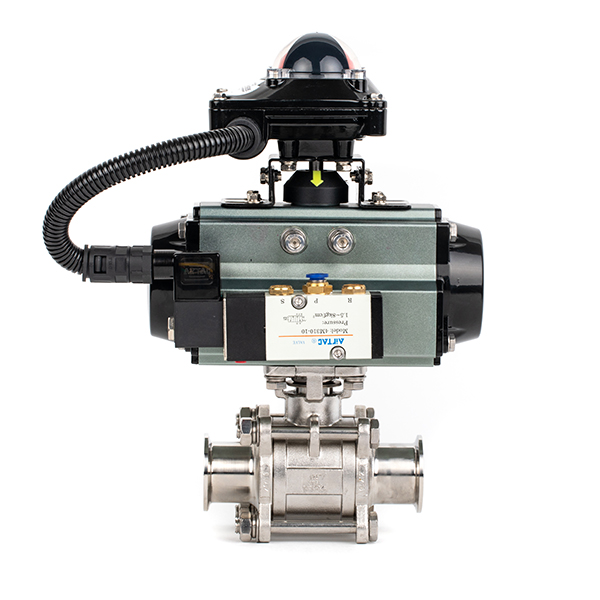

Three-piece pneumatic all-inclusive ball valve
Temperature: Working temperature: -20~+180℃(PTFE)
Pressure: ≤10bar
Material: 304/316L, 1.4301/1.4404
Connection: Welding. Quick assembly. Thread. Flange
Standard: 3A, ISO, DIN
Pneumatic all-inclusive three-piece ball valve
application
Suitable for lithium battery industry
Design and characteristics
Specification: 1/2"-4", DN10-DN100
Temperature: Working temperature: -20~+180℃(PTFE)
Pressure: ≤10bar
Material: 304/316L, 1.4301/1.4404
Connection: Welding. Quick assembly. Thread. Flange
Standard: 3A, ISO, DIN
Can be equipped with pneumatic and electric actuators
Valve maintenance can be disassembled without dismantling the pipeline
Low operating torque
Using imported sealing materials, all sealing materials are in accordance with FDA 177.2600
